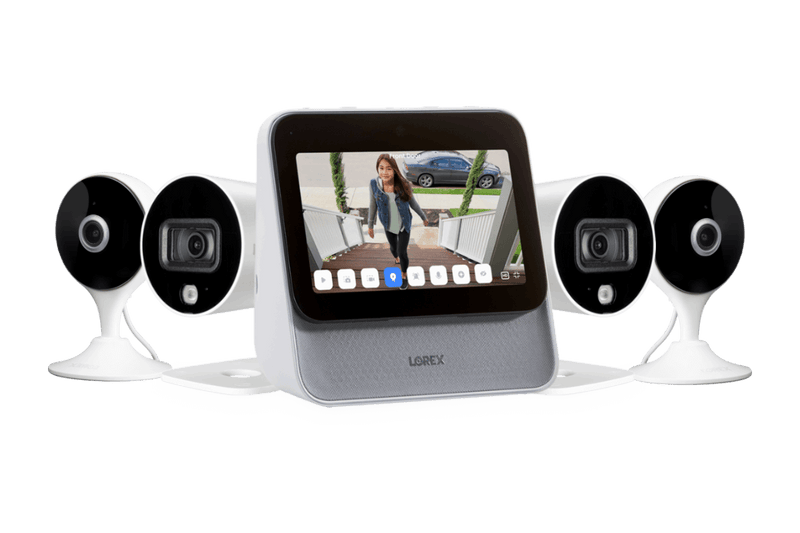

Lorex Smart Home Security Center with Two 1080p Outdoor and Two 2K Indoor Wi-Fi Security Cameras

LHC-K22
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

Lorex Smart Home Security Center and Indoor / Outdoor Cameras


The Lorex Smart Home Security Center (LSHSC) serves as the center of your own personal smart home eco-system. It is a revolutionary home monitoring solution that's designed for easy security monitoring while maintaining maximum privacy. This bundle includes Indoor and Outdoor Wi-Fi Security Cameras. You can also expand your coverage with further Wi-Fi Cameras and Accessory Sensors to build the perfect security system for your home.



LHC-K22

SPECIFICATIONS

1

LSHSC

7" touch-screen control hub

129°

FIELD OF VIEW

Ideal for monitoring wide,
open areas

64GB

microSD

Maximum 1× 256GB microSD / 1TB M.2 2280 SATA SSD M.

0

Monthly Fees

Secure and private

The Lorex Smart Home Security Center

More than a security system, the center of your home

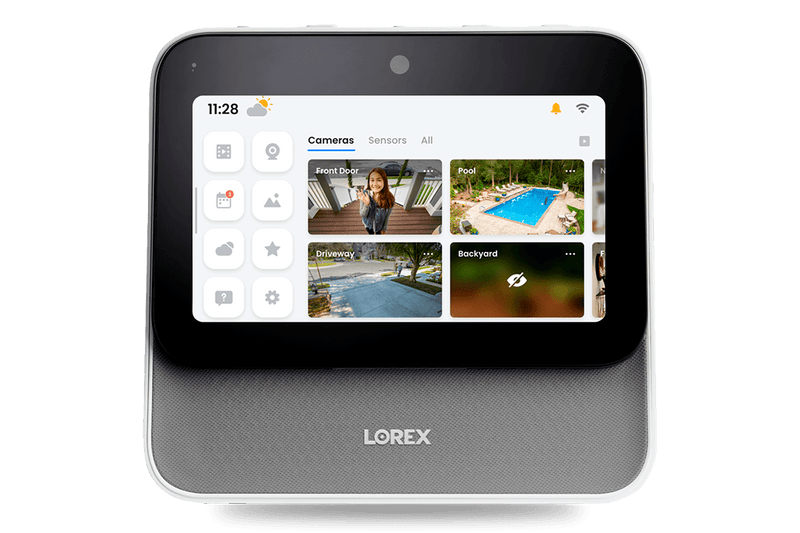

The all-in-one LSHSC simplifies your home monitoring experience with its intuitive touch smart display. You can also use your voice to perform simple commands, such as:


"Lorex, show me all outdoor cameras"
"Lorex, show me what happened yesterday at the 'front door' camera"
"Lorex, show me all people* at the 'front door' camera between 2 and 3pm"
"Lorex, turn on warning lights on all outdoor cameras"
"Lorex, turn privacy mode on for all indoor cameras"



* Requires supported camera and setting to be turned on



Control and access all compatible Lorex devices

Control features with the intuitive 7-inch touch display*.


Built with privacy in mind

There are several built-in features to ensure your privacy - log in to the LSHSC quickly with the Face Unlock feature, select privacy mode for compatible cameras to turn off streaming and recording for those private moments, and the option to disable the built-in microphone and cover the front camera lens.

Security designed to grow with you

Pair a variety of Lorex wireless devices and control them from the LSHSC to build the perfect security system for your home. Adding new devices is simple with a built-in step by step setup guide. You can also add a Lorex Range Extender to extend the reach of your LSHSC (sold separately).

Completely offline and secure

Use the Lorex Voice™ Assistant to access your cameras and view footage with simple voice commands. This voice assistant is hosted entirely on the LSHSC and is not connected to the internet for ultimate privacy.

Keep your footage private and secure

The LSHSC includes a surveillance-grade class 10 microSD card. Upgrade the storage to a maximum of 256GB microSD and/or a 1TB M.2 2280 SATA SSD M.






Smart, Active and Bright.

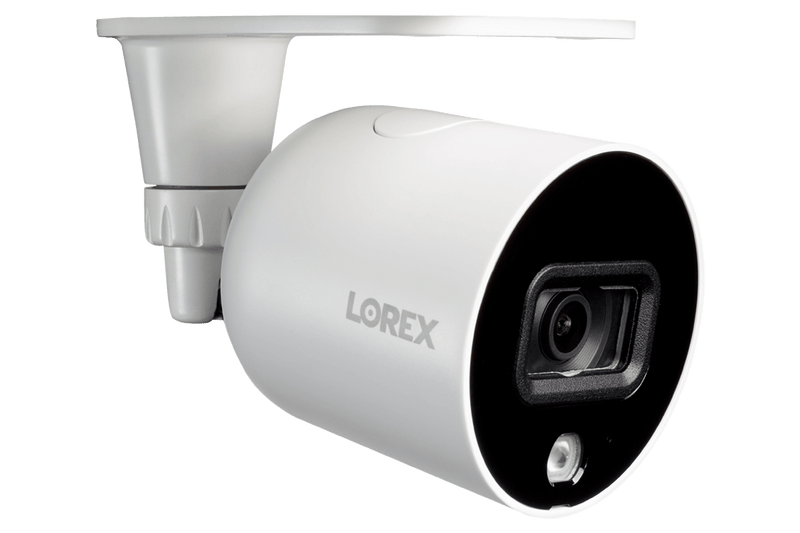

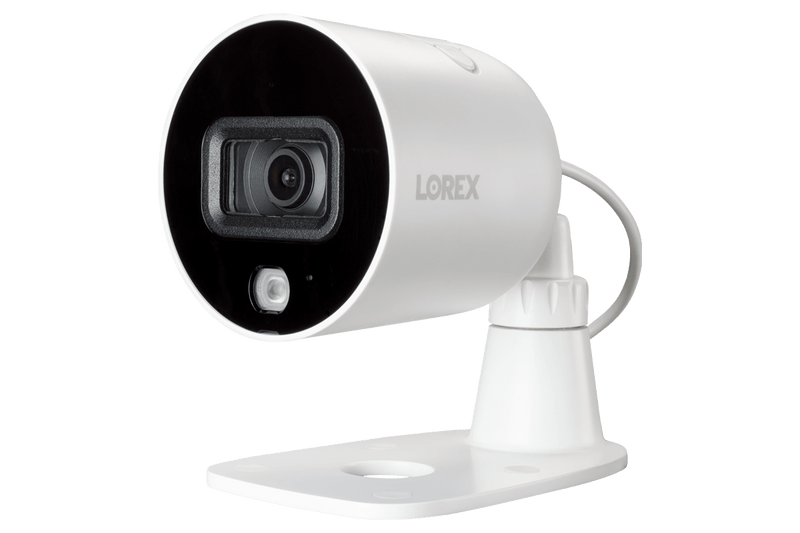

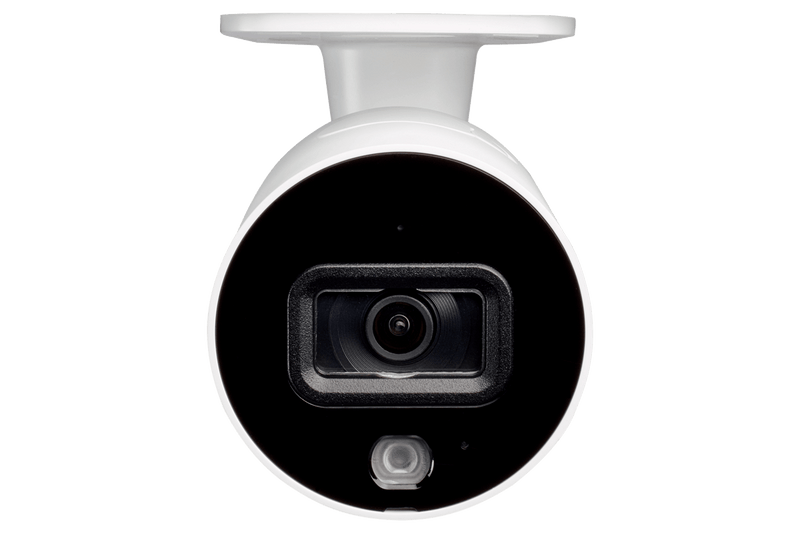

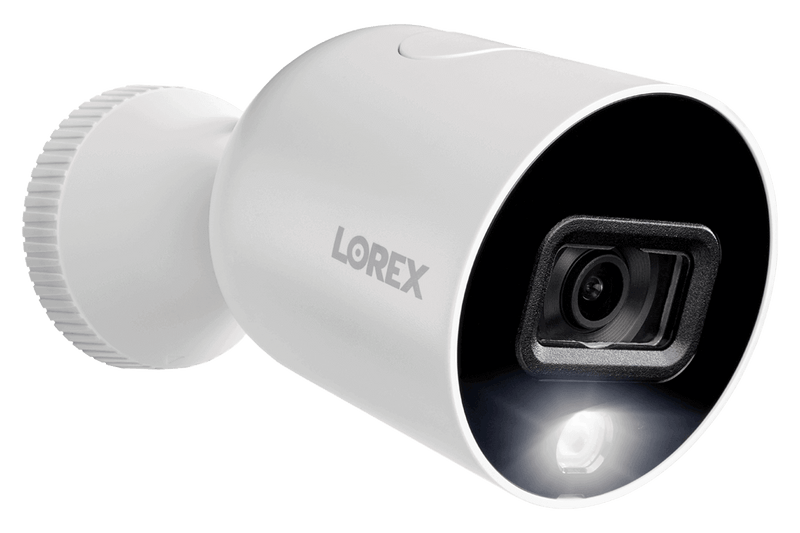

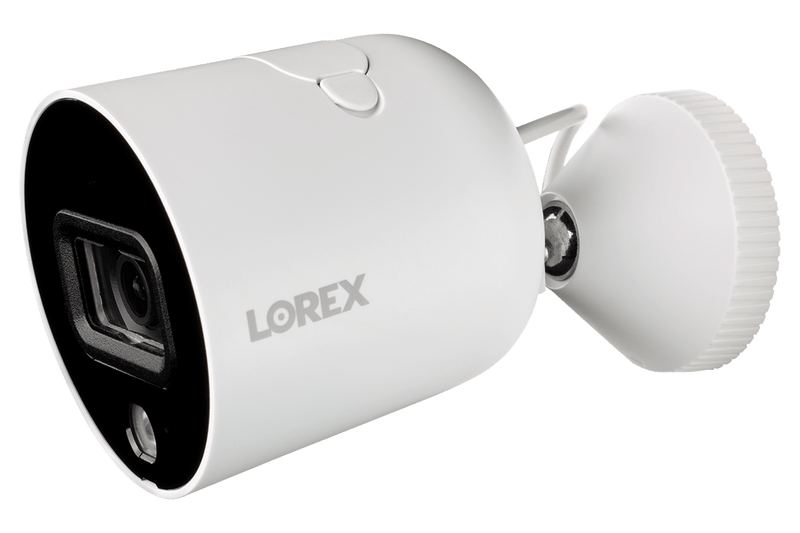

The 1080P Smart Outdoor Wi-Fi cameras provide complete coverage of your home, day and night.

Experience the difference that full 1080P HD video makes. Using an advanced 2MP (megapixel) image sensor, this camera will deliver high quality video with outstanding clarity and detail.

Take control of your safety with active deterrence features such as a warning siren and a LED warning light. Both can be manually enabled or customized to only be activated when a person or vehicle is detected.

Thanks to the camera's person and vehicle detection capability, you'll avoid unwanted or false notifications. This camera has been designed to distinguish movement detected by either people or vehicles, limiting unnecessary alerts to your smartphone or tablet.

Get the most out of your security camera with 2-way audio. The built-in microphone and speaker allows you to communicate to anyone at the other end of the camera.

This camera features our revolutionary Color Night Vision (CNV) technology, which will produce full-color video with the help of external lighting around the camera. In regular nighttime conditions that are too dark for CNV, this camera will use it's infrared LEDs to record black and white video footage up to 50ft (15m).

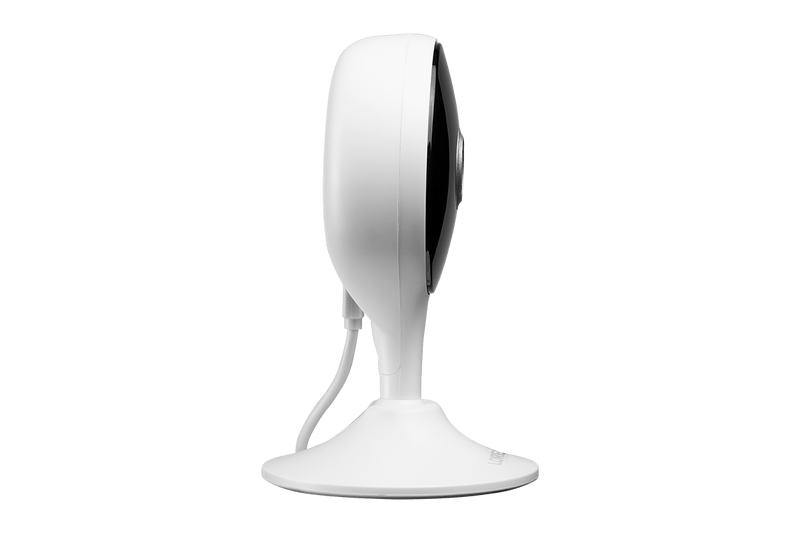

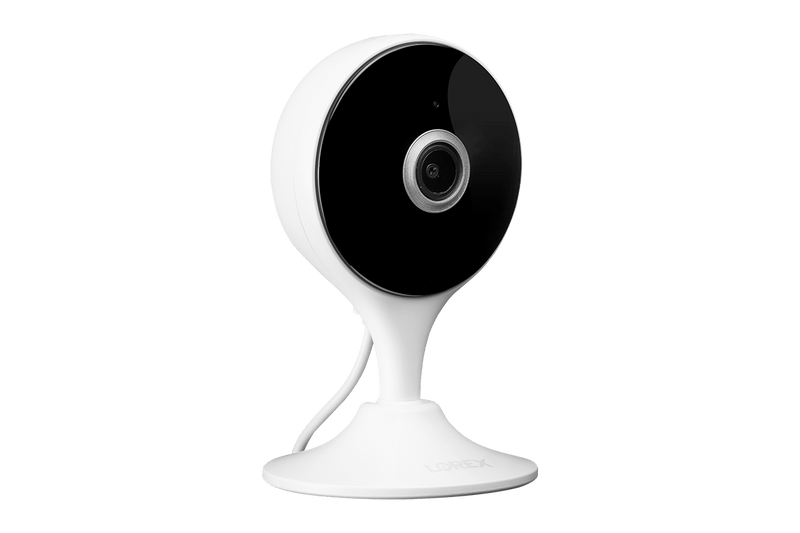

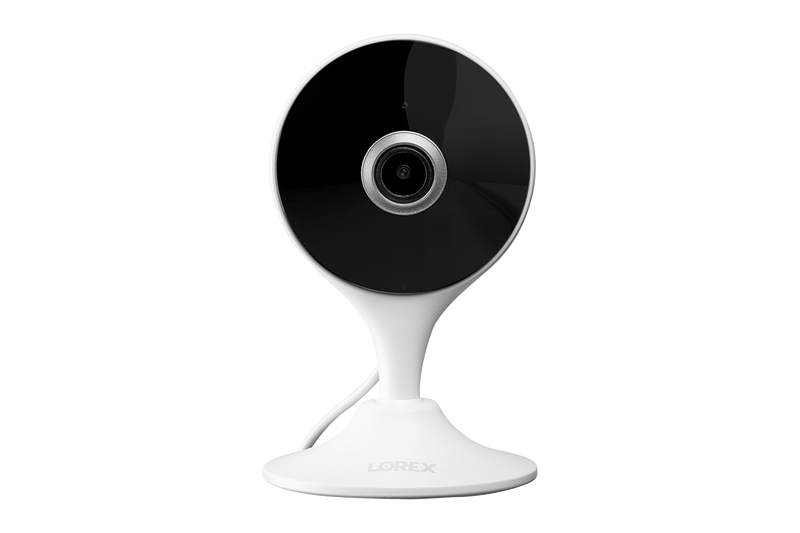

Smart and Flexible Security

Designed for easy installation and straightforward remote viewing.

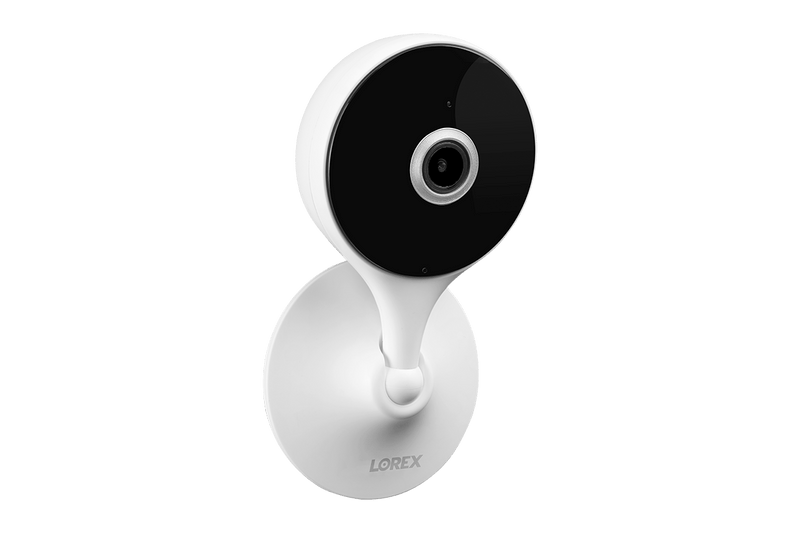

With 2K resolution and a flexible camera head that can bend up to 90°, you can rest assure you will not miss any detail.

This camera's built-in microphone and speaker will help you talk to whoever is on the other end of the camera, which comes in handy if you can't do it in person.

Avoid false alerts and unnecessary notifications with person detection. This feature provides more intelligent security and you'll only get a notification whenever a person enters the camera's field of view.

Equipped with a 125° wide angle lens, this Wi-Fi camera covers more than enough ground. Take advantage of the wider field of view by placing the camera in large areas or doorways for maximum coverage.

When light is limited, the camera will automatically switch to infrared night vision so you won't miss a thing.



Lorex Home Center Compatibility

Pair a variety of Lorex wireless devices and control them from the Lorex Home Center.

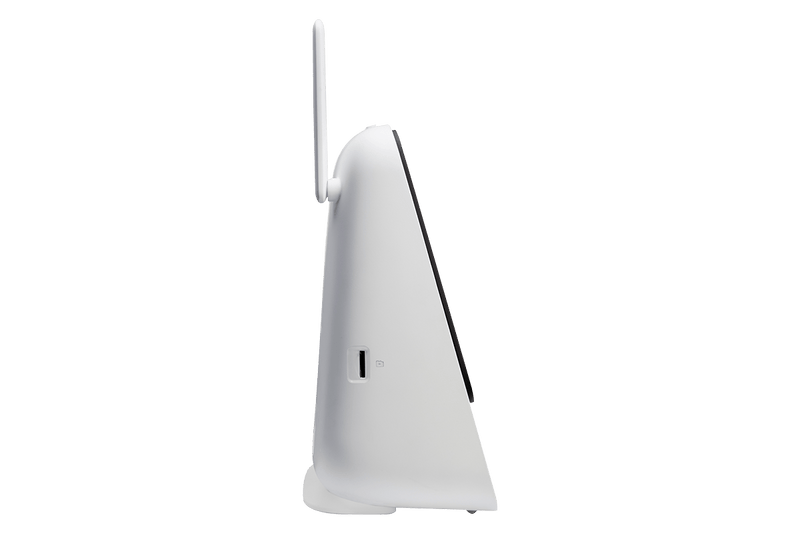

The Lorex Smart Home Security Center

Remote viewing from your mobile with Lorex™

Your home will always be within reach with help from the Lorex Mobile App. This versatile app allows you to remotely access your LSHSC so you can easily view live videos, customize your system settings, playback recorded motion events and more.


apple store badge google play store badge

Frequently Asked Questions

Step 1. Connect your LSHSC to your network via Ethernet or Wi-Fi.

Step 2. On the LSHSC, go to Home Screen > Device Settings > Device Info > LSHSC, then tap Device ID to open the QR Code.

Step 3. Now, get your smartphone and open the Lorex app, then tap + at the topmost right corner of the screen and scan the QR Code bring displayed on your LSHSC.

Step 4. Follow the on-screen instructions on adding your LSHSC to the Lorex app.

Step 1. Go to Home Screen > Device Settings > Security Settings.

Step 2. Turn On or Off Require passcode to unlock or Face Unlock.

NOTE: Using the camera cover to hide the lens will not turn off the feature. It will simply prevent video capturing for the Face Unlock feature.

NOTE: In Offline Mode, you can still view your camera, and your sensors remain functional, but you cannot see your devices remotely from the Lorex app.

Step 1. Go to Home Screen > Device Settings > Network Settings.

Step 2. Tap Wi-Fi Network, then toggle the button to on or off.

Step 3. Tap Wired Network, then toggle the button to on or off.

Still Have Questions?

Video

What's Included?

LSHSC Dimensions LSHSC Labels

Screen Size 7" Diagonal
Screen Type LCD Touch Screen
Audio Full Duplex 2-way Audio
Microphone 2 × Noise Cancelling Microphones
Built-in front camera 1080p, support physical cover
Speakers 3 × Speakers
Camera Built-in
Wireless Camera Support Up to 8×1080p or 4×2K
Wireless Sensor Support Up to 32
Simultanous Camera Viewing Up to 4 channels
Voice Assistant Lorex Voice Assistant

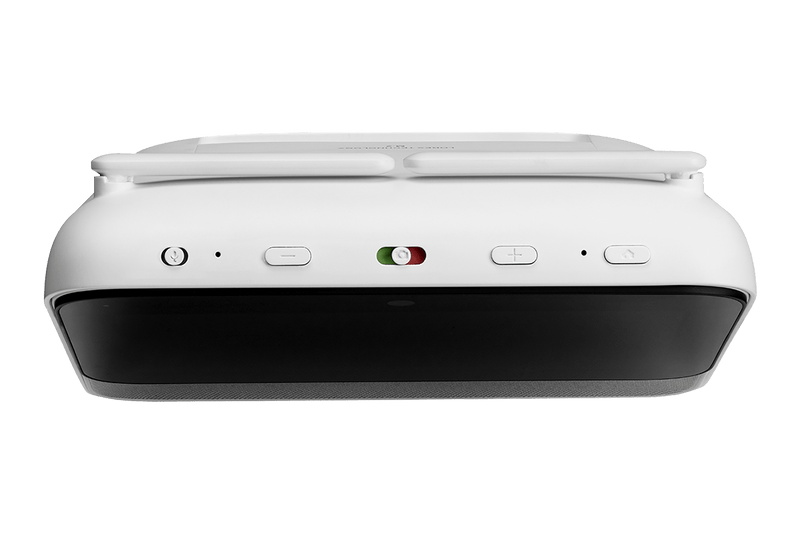

Privacy Features Local Voice Assistant, Microphone Disconnect Switch, Camera Cover
Digital Zoom Camera Dependent
Log-in Options Password or Face Unlock
Status LED Multi-color LED status bar indicator
Sensors Ambient Light
Storage microSD (up to 256GB) or M.2 2280 SATA SSD M (up to 1TB)*
Internet Recommendation 2 cameras ~4Mbps / 4 cameras ~10Mbps @1080p upload speed**
Home Router Connectivity 100Mbps Ethernet or 5GHz Wi-Fi
Device Connectivity 2.4/5GHz Wi-Fi / BLE 5.0

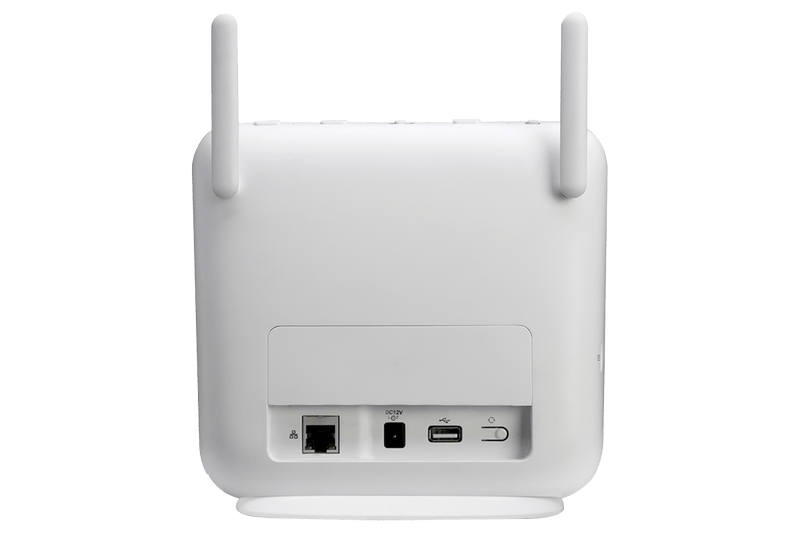

Ports Power, Ethernet, 1 × USB
Weather Rating Indoor only
Operating Temp. Range 32~104°F / 0~40?
Languages English
Power 12V DC / 2A
Available Color White
Dimensions 7.5 x 3.6 x 7.0" / 19.0 x 9.1 x 17.7cm
Weight 1.81lb / 0.92kg

Each LSHSC-E Camera Includes:

Lorex Smart Home Security Center
1 × Power Adapter
1 × Ethernet cable
Quick setup guide
64GB microSD card (pre-inserted)
  1. Playback screen is HD resolution. Footage can be exported at full resolution, or can be zoomed into on the device.
  2. Compatible with certain Lorex wireless cameras only. For a list of compatible cameras please visit lorex.com/compatibility
  3. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit: lorex.com/smarthome
  4. Accessing your security system remotely requires a high-speed Internet connection. Ensure your recorder has a connection to a router (not included). An upload speed of at least 5 Mbps is recommended for remote video viewing.
  5. For the latest list of supported apps and devices, please visit lorex.com/compatibility
W281AA active deterrence security camera
  • Smart Motion distinguishes movement detected by either people or vehicles, limiting unnecessary alerts1
  • The Lorex Home™ app sends you motion notifications ensuring you don't miss a thing
  • Experience enhanced nighttime clarity and better video evidence with Color Night Vision™2
  • When light is limited, take advantage of 50 ft (15 m) IR night vision3
  • Quickly access footage and features with simple voice commands (compatible with: Amazon Alexa™ and Google Assistant™)4
  • View live or recorded video from your smartphone with the Lorex Home™ app (compatible with: Apple TV™)4
  • Local microSD storage, expandable up to 256 GB
  • Motion-activated LED warning light can be manually enabled or customized to only be triggered when a person or vehicle is detected
  • Deter uninvited guests with remote activated siren
  • Built-in mic and speaker allows you to listen and speak to visitors with 2-way talk5

Each W282CAD-E Camera Includes:

1 × Wi-Fi Camera
1 × Wall Mount
1 × Table Stand / Ceiling Mount
1 × Power Adapter and Extension Cable*
1 × Mounting Kit
1 × Pre-inserted microSD Card
1 × Quick Start Guide

1. Accuracy of Person and Vehicle Detection will be influenced by multiple factors, such as the object's distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection.
2. Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
3. Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 50ft/15m in total darkness). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.
4. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, instructions visit: www.lorex.com/smarthome
5. Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws.

*A 10ft power extension cable is included with the power adapter (9.5ft), giving you a total of 19.5ft power cable. Use of multiple extension cable is not allowed.


All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates.

W461ASC dimensions

Dimensions (WxDxH): 2.7" x 2.7" x 4.3" (68mm x 68mm x 109mm)
Weight: 0.53lbs / 0.24kg

Package Contents:

2K Wi-Fi
Camera

16GB MicroSD
Card

Universal
Mount

Power
Adapter

Mounting
Kit

Quick Start
Guide

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.
