Features

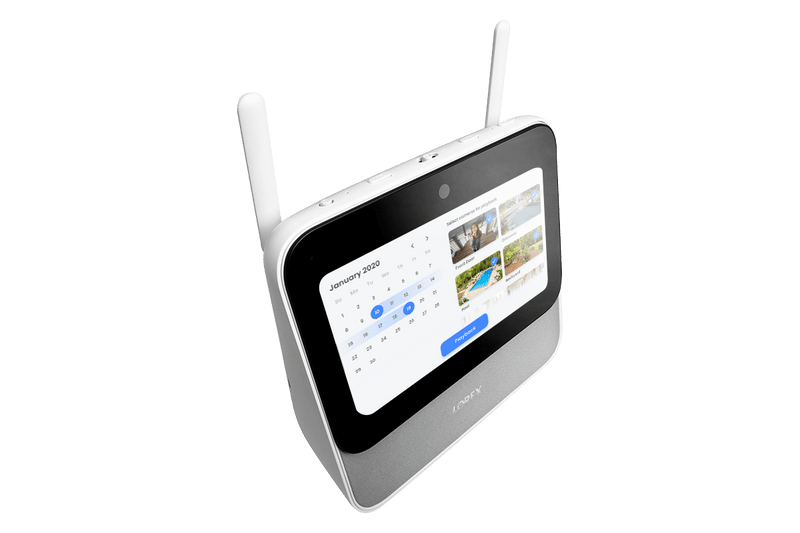

Lorex Smart Home Security Center

A Smart All-In-One Solution for your Home Monitoring Needs



Stay centered with a smart and intuitive monitoring solution - The Lorex Smart Home Security Center (LSHSC). Security at your fingertips - using the touch screen interface, control, view and customize your settings and cameras. "Lorex, show me all cameras." Using the Lorex Voice™ Assistant, conveniently access your video feeds with just the sound of your voice. Need a recap of events while you were out today? Just ask: "Lorex, show me all motion events from front door camera between 1-3 pm". With privacy in mind, enjoy multiple safeguard options with the heightened privacy features. Your home security, your way - build a versatile home monitoring system to meet your needs by pairing various Lorex wireless cameras, devices and accessories. No monthly fees - keep recordings to yourself thanks to the built-in local storage.


Touch, talk and view - an all-in-one smart solution for your home monitoring needs, The Lorex Smart Home Security Center.



Touch Screen Interface

The intuitive interface and 7-inch touch display makes viewing and customizing your cameras and accessories easy1.

Secure Lorex Voice Assistant

The built-in secure Lorex Voice Assistant™ means your conversations stay private.




Lorex Smart Home Security Center Compatibility

Pair a variety of Lorex wireless devices and control them from the LSHSC.



How to Pair Devices to the LSHSC

The connection process for some LSHSC compatible devices differs:



Direct Setup Method

Connect directly to the LSHSC

*Doorbell and LSHSC firmware updates required.



App Setup Method

Connect to the Lorex Home App *

*Make sure to upgrade the camera to the latest firmware via the App



No hidden cost & monthly fees

All video footage is safely stored on the microSD card located within the recorder. Upgrade the storage to a maximum of 256GB microSD and/or a 1TB M.2 2280 SATA SSD M.

Up to 2K QHD motion events

Record 1080p HD or 2K QHD motion events (person, vehicle, etc.) from all your compatible Lorex devices.

Multi-camera goodness

You can connect up to 8× 1080p,
4× 2K cameras and up to 32 sensors.

Extended wireless range

Use the included flexible antenna to optimize the signal or add an optional extender for hard to reach places (sold separately, AX62TR).

color night vision

Local reliable storage you can count on

The WD Purple microSD card is designed specifically for continuously recording security cameras. It offers exceptional performance and reliability to meet the high demands of 24/7 HD video recording. The LSHSC can be upgraded to a maximum of 256GB microSD storage.

Enhanced Privacy Features
microphone kill switch

Microphone Disconnect Feature



Flick the microphone switch to keep your conversations completely private.

microphone kill switch

Face Unlock



Login to the LSHSC quickly with the Face Unlock* feature.

microphone kill switch

Camera Cover



The lens of the built-in camera can be covered if not using the Face Unlock feature.

Multiple Connection Options
microphone kill switch

Wired



Connect to your home router using the provided Ethernet cable.

microphone kill switch

Wireless



Connect to your home router wirelesly for flexible placement.

microphone kill switch

Offline



An internet connection is not required for operating and connecting to different Lorex devices.**

* Face unlock is limited to only 1 user and requires a well-lit area.
** An internet connection is required to use the Lorex Home App to receive automatic update notifications.

Remote viewing from your mobile device with Lorex Home™

Your home will always be within reach with help from the Lorex Home App. This versatile app allows you to remotely access your LSHSC so you can easily view live videos, customize your system settings, playback recorded motion events and more.

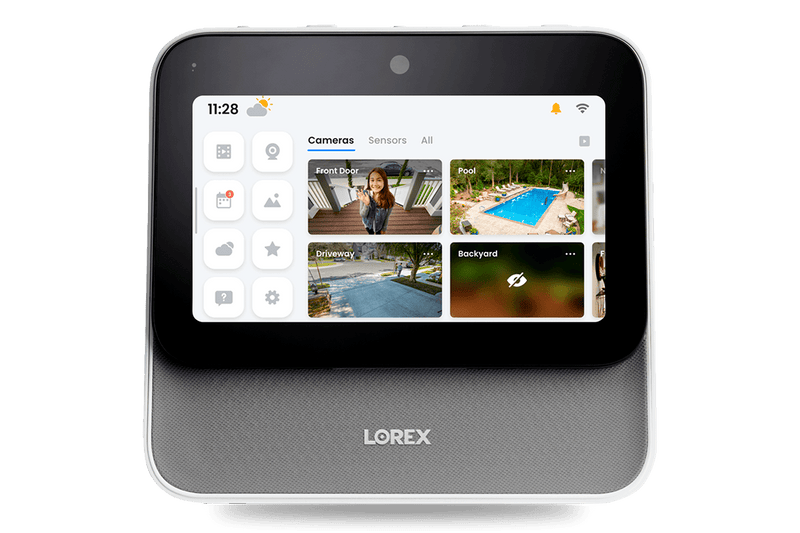

lorex home center front view
app store logo
google play store logo

Frequently Asked Questions

Step 1. Connect your LSHSC to your network via Ethernet or Wi-Fi.

Step 2. On the LSHSC, go to Home Screen > Device Settings > Device Info > LSHSC, then tap Device ID to open the QR Code.

Step 3. Now, get your smartphone and open the Lorex Home app, then tap + at the topmost right corner of the screen and scan the QR Code bring displayed on your LSHSC.

Step 4. Follow the on-screen instructions on adding your LSHSC to the Lorex Home app.

Step 1. Go to Home Screen > Device Settings > Security Settings.

Step 2. Turn On or Off Require passcode to unlock or Face Unlock.

NOTE: Using the camera cover to hide the lens will not turn off the feature. It will simply prevent video capturing for the Face Unlock feature.

NOTE: In Offline Mode, you can still view your camera, and your sensors remain functional, but you cannot see your devices remotely from the Lorex Home app.

Step 1. Go to Home Screen > Device Settings > Network Settings.

Step 2. Tap Wi-Fi Network, then toggle the button to on or off.

Step 3. Tap Wired Network, then toggle the button to on or off.

Still Have Questions?

Product Compatibility

Video

What's Included?

LSHSC Dimensions LSHSC Labels

Screen Size 7" Diagonal
Screen Type LCD Touch Screen
Audio Full Duplex 2-way Audio
Microphone 2 × Noise Cancelling Microphones
Built-in front camera 1080p, support physical cover
Speakers 3 × Speakers
Camera Built-in
Wireless Camera Support Up to 8×1080p or 4×2K
Wireless Sensor Support Up to 32
Simultanous Camera Viewing Up to 4 channels
Voice Assistant Lorex Voice Assistant
Privacy Features Local Voice Assistant, Microphone Disconnect Switch, Camera Cover
Digital Zoom Camera Dependent
Log-in Options Password or Face Unlock
Status LED Multi-color LED status bar indicator
Sensors Ambient Light
Storage microSD (up to 256GB) or M.2 2280 SATA SSD M (up to 1TB)*
Internet Recommendation 2 cameras ~4Mbps / 4 cameras ~10Mbps @1080p upload speed**
Home Router Connectivity 100Mbps Ethernet or 5GHz Wi-Fi
Device Connectivity 2.4/5GHz Wi-Fi / BLE 5.0

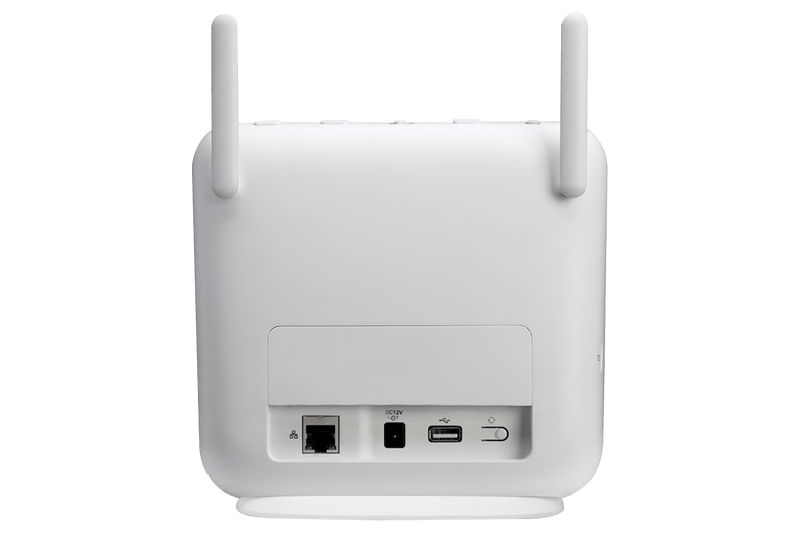

Ports Power, Ethernet, 1 × USB
Weather Rating Indoor only
Operating Temp. Range 32~104°F / 0~40?
Languages English
Power 12V DC / 2A
Available Color White
Dimensions 7.5 x 3.6 x 7.0" / 19.0 x 9.1 x 17.7cm
Weight 1.81lb / 0.92kg

Each LSHSC-E Camera Includes:

Lorex Smart Home Security Center
1 × Power Adapter
1 × Ethernet cable
Quick setup guide
64GB microSD card (pre-inserted)
  1. Playback screen is HD resolution. Footage can be exported at full resolution, or can be zoomed into on the device.
  2. Compatible with certain Lorex wireless cameras only. For a list of compatible cameras please visit lorex.com/compatibility
  3. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit: lorex.com/smarthome
  4. Accessing your security system remotely requires a high-speed Internet connection. Ensure your recorder has a connection to a router (not included). An upload speed of at least 5 Mbps is recommended for remote video viewing.
  5. For the latest list of supported apps and devices, please visit lorex.com/compatibility
