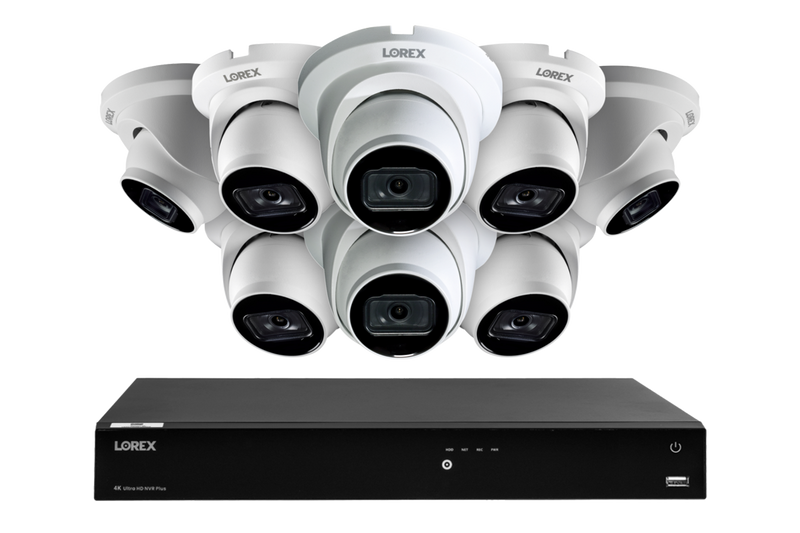

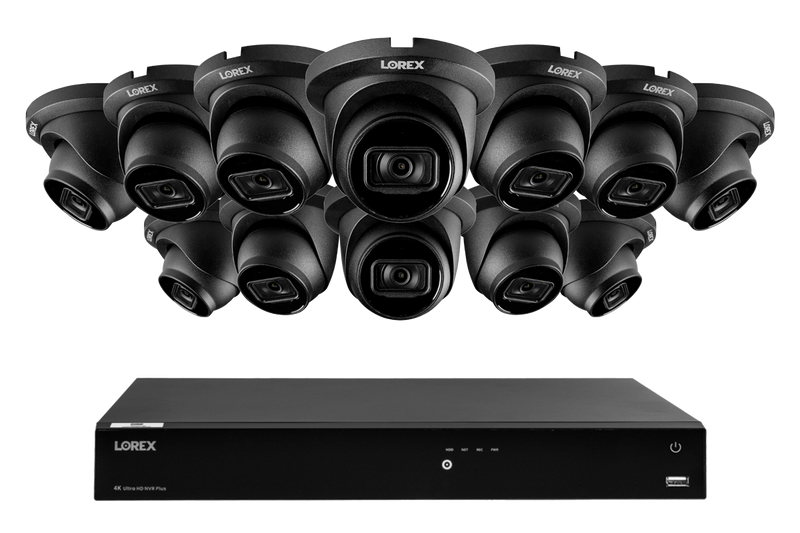

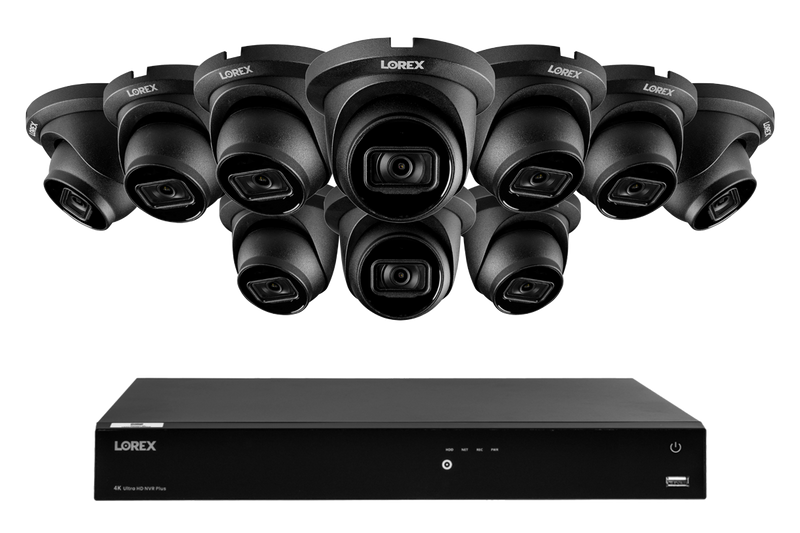

Lorex 4K 16-Camera Capable (Wired or Fusion Wi-Fi) 4TB Wired NVR System with IP Dome Cameras featuring Listen-In Audio
Lorex 4K 16-Camera Capable (Wired or Fusion Wi-Fi) 4TB Wired NVR System with IP Dome Cameras featuring Listen-In Audio
Lorex 4K 16-Camera Capable (Wired or Fusion Wi-Fi) 4TB Wired NVR System with IP Dome Cameras featuring Listen-In Audio
Lorex 4K 16-Camera Capable (Wired or Fusion Wi-Fi) 4TB Wired NVR System with IP Dome Cameras featuring Listen-In Audio
Lorex 4K 16-Camera Capable (Wired or Fusion Wi-Fi) 4TB Wired NVR System with IP Dome Cameras featuring Listen-In Audio
Lorex 4K 16-Camera Capable (Wired + Fusion Wi-Fi) 4TB NVR System with IP Dome Cameras featuring Listen-In Audio - Black 10
Lorex 4K 16-Camera Capable (Wired + Fusion Wi-Fi) 4TB NVR System with IP Dome Cameras featuring Listen-In Audio - Black 12
Lorex 4K 16-Camera Capable (Wired + Fusion Wi-Fi) 4TB NVR System with IP Dome Cameras featuring Listen-In Audio - Black 16
Lorex 4K 16-Camera Capable (Wired + Fusion Wi-Fi) 4TB NVR System with IP Dome Cameras featuring Listen-In Audio - White 8
Lorex 4K 16-Camera Capable (Wired + Fusion Wi-Fi) 4TB NVR System with IP Dome Cameras featuring Listen-In Audio - White 10
Lorex 4K 16-Camera Capable (Wired + Fusion Wi-Fi) 4TB NVR System with IP Dome Cameras featuring Listen-In Audio - White 12
Lorex 4K 16-Camera Capable (Wired + Fusion Wi-Fi) 4TB NVR System with IP Dome Cameras featuring Listen-In Audio - White 16
zoom Roll over image to zoom in Click on image to zoom
Receive an exclusive 15% discount with Lorex Upgrade Program. Click here to learn more.
A Series

Lorex Fusion Series 4K 16 Camera Capable (Wired or Fusion Wi-Fi) 4TB Wired NVR System with A14 IP Dome Cameras

Save $375.00 (30%)
N4K4-168BD-1
Number of cameras:
Color:
$874.99 Reg. $1,249.99
Receive an exclusive 15% discount with Lorex Upgrade Program. Click here to learn more.
$874.99
SAVE $375.00 (30%)
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Frequently Bought Together

+
+
+
Total price:


For more customization
options check out our
new Bundle Builder!

Features

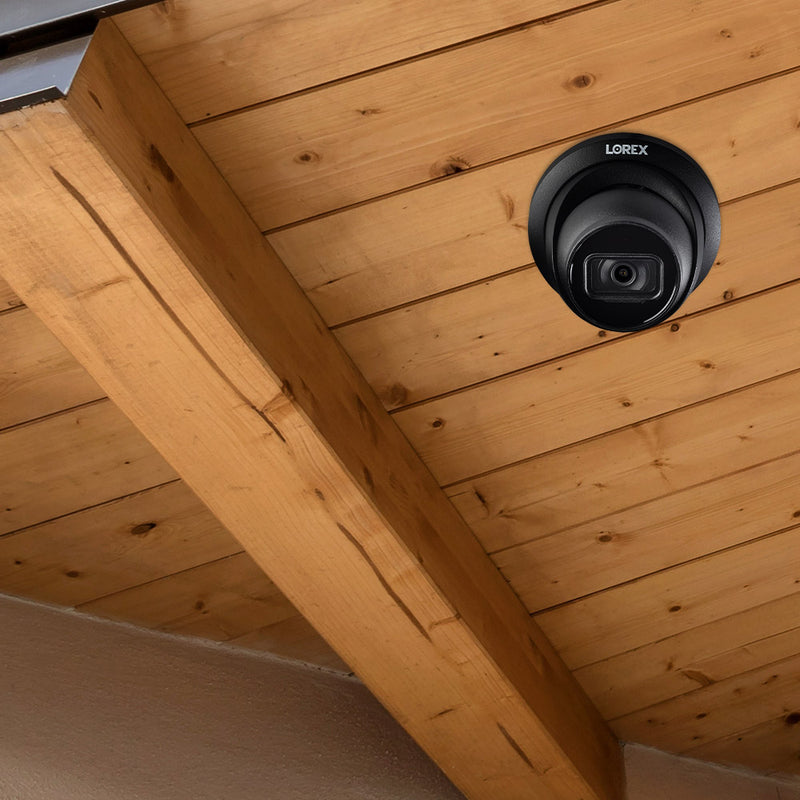

Experience advanced security with the Lorex 4K IP Wired Dome Security Camera. It boasts 4K resolution along with Color Night Vision and Smart Person and Vehicle detection, allowing you to keep watch of your property with unprecedented clarity, even in dark environments. Capture and listen in to audio with the built-in microphone for an extra layer of protection.



Resolution

Color Night
Vision

IP67
Weatherproof

Built-in
Microphone

Person and Vehicle
Detection



Capture the details you need

4K recording resolution can make all the difference when it comes to capturing those important moments. This camera features an 8MP image sensor, which provides an exceptionally high level of detail and clarity. 4K quality also improves post-recording digital zooms to help decipher distant details, as the higher amount of pixels will keep the quality of the image for longer as the digital zoom is applied.



Don’t lose any details at night

See in color all night long thanks to this camera’s Color Night Vision (CNV) technology. CNV works best with plenty of ambient lighting, but not to worry, in total darkness, this camera will automatically revert to its powerful infrared LEDs for crisp black and white footage.



Smart Motion Detection (Person and Vehicle)

This camera comes with advanced person and vehicle detection that helps identify more important objects that enter the camera's field of view. Thanks to this innovative feature, you will only get a push notification whenever motion from a person or vehicle is detected on your property. This effectively reduces the number of unwanted false alerts.



Capture more than just video

Equipped with a built-in microphone, this camera will provide you with listen-in audio recording.* This will provide you with an extra layer of information or evidence, such as voices, that would not be there with only the video footage itself.



All season security

Extreme hot or freezing temperatures won't affect this camera. It comes with our highest weatherproof rating (IP67) to ensure year-round coverage for years to come.




Smart Home Compatibility

Get faster access to your security system by connecting it to other Smart Home devices; use simple voice commands to activate camera features with Amazon Alexa™ and Google Assistant™, use it with Chromecast or Firestick to monitor your security camera footage on a larger screen. For more information about current smart home integrations, visit our Smart Home Guide.

works with Google works with Alexa
Lorex App Screenshots

Remote viewing from your mobile with Lorex™

Connect this NVR to our Lorex app to quickly view and control your security system from your smartphone. The app will also keep you connected to your property with detailed motion-activated push notifications.


Download on the App Store Get it on Google Play



Customize Your Security With Fusion

Create a personalized Lorex Smart Home ecosystem by pairing your system with up to 16 wired or Wi-Fi devices. This allows you to record continuous video from all Wired and Wi-Fi cameras to the recorder's hard drive. This can also provide invaluable back-up of events should a Wi-Fi camera's local storage become disabled.


Get Support for Lorex Fusion How to set up Fusion System


All-In-One Security

Get the most out of your system by connecting wired and wireless cameras, doorbells, and sensors to your recorder.

Continuous Recording

24/7 continuous recording directly to your hard drive with expandable storage and no monthly fees.*

Lorex App

Access all of your Lorex devices from one place, allowing for easy control and monitoring of your property.



*To conserve battery life, Lorex Battery-Operated Doorbells and Cameras cannot record 24/7 continuously to the Fusion Recorder’s local hard drive.


Fusion Devices


New, User-Friendly Navigation

This NVR comes with our new and improved recorder interface. The updated navigation provides a faster setup, instant access to your live cameras, easier customization of your cameras, and a simpler method to review footage.

Learn More



Free Local Storage, No Monthly Fees

Local storage means no monthly fees and with the built-in 4TB hard drive, you will have ample storage, while your recordings stay safe and private.



What's Included?

N864 Front Overview
N864 Back Overview
  1. Info / Panic Button
  2. Hard Drive, Network, Recorder & Power LEDs
  3. USB
  4. Power Button
  5. Power Input
  6. Power Switch
  7. PoE Ports
  8. Alarm
  9. HDMI
  10. VGA Port
  11. RS232
  12. LAN
  13. Audio In / Out

Package Contents:

4K Fusion NVR

Ethernet Cable

USB Mouse

HDMI Cable

  • 4K (8MP) IP cameras are required to take advantage of 4K recording.
  • Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
  • This Fusion NVR can connect to 16 wireless devices per system. The NVR must be connected to the your Wi-Fi Router via network cable. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
  • Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com/smarthome
  • Accuracy of Smart Motion Detection will be influenced by multiple factors, such as the object’s distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection. Compatible with certain Lorex IP cameras only.
  • Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
  • Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
  • HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
  • NVR has a total PoE power output of 130w. Different IP cameras have different wattage specifications. Please double check your camera specifications for power consumption (Wattage) requirements in order to not exceed the NVRs power output availability of the recorder when adding cameras. To learn more, please visit www.lorex.com/compatibility

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.

E842CD Lineart

Package Contents:

4K Ultra HD Dome Camera

Ethernet Extension Cable

Mounting Kit

Mounting Bracket

*Audio recording and listen-in audio are disabled by default. Audio recording and/or use of listen-in audio without consent is illegal in certain jurisdictions. Lorex Corporation assumes no liability for use of its products that does not conform with local laws.
**A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing
