2 Port PoE+ Repeater (100m/300ft 1-in 2-out Daisy Chain PoE Repeater)

ALP-HPS-01New ArrivalLorex for business badge
Purchase at pro.lorex.com
Lorex Partner Program Exclusive: Pricing available to Lorex Business Partners
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

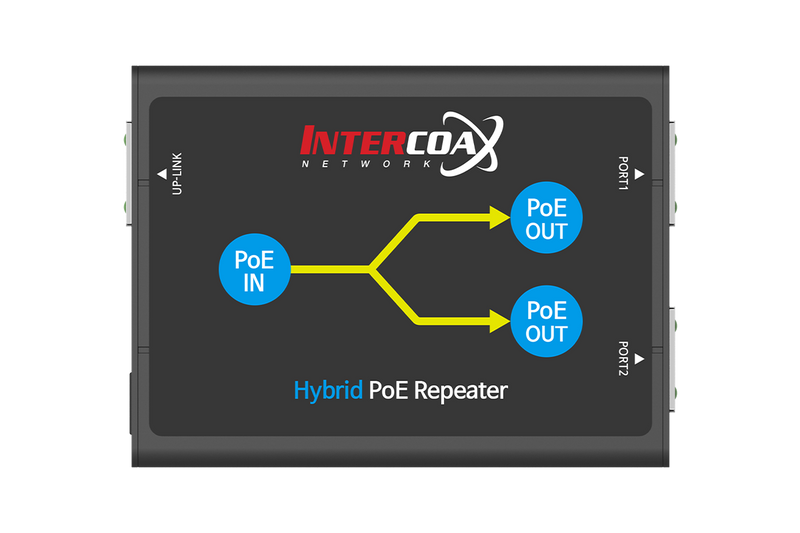

1 Input → 2 Output PoE

Daisy Chain Connection

PoE from NVR to IP Camera

8K High-Quality Video Stream

Surge / Short Protection

Professional CCTV Quality

Simplified Installation

Cost Saving

Worldwide Certification

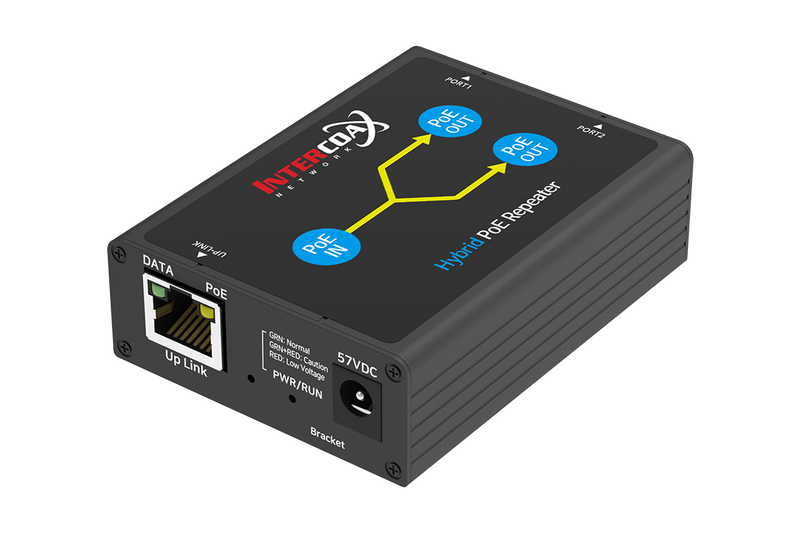

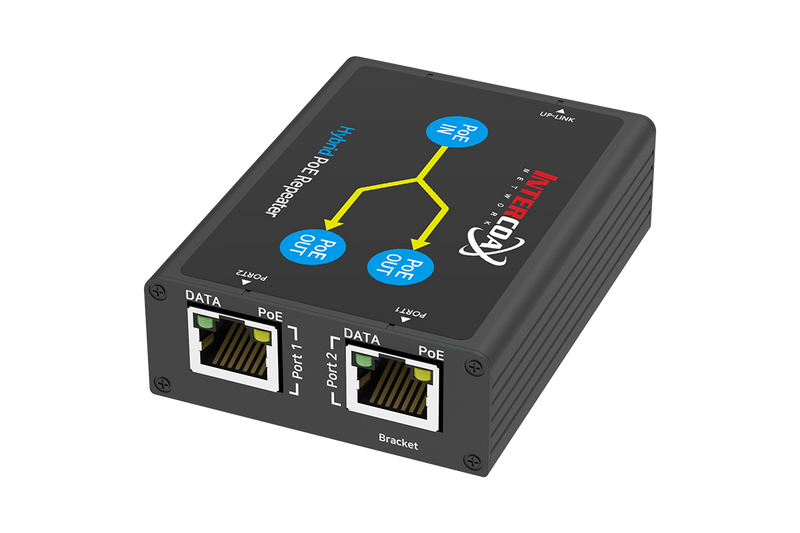

The HPS-01 is a 2-port Hybrid PoE Switch that transmits both network signals and PoE+ power up to 200 meters between devices. Its 1-input, 2-output design simplifies the installation of two network devices onto a single LAN cable and enables the connection of multiple devices in a cascade configuration. Equipped with a built-in standard PD, the device provides a secure PoE+ power supply and supports PoE output up to 25.5W (up to 30W with a DC 57V power supply).

Connection Diagram

Connection Diagram

*Transmission distance may vary depending on the type and quality of cable.

Product Specifications

Model HPS-01: 2 Port Hybrid PoE Switch
Interface
EoDownlink 2 x RJ-45
Uplink 1 x RJ-45 – 10/100 Base-T with Auto-detect MDIX
Transmission Rate 100 Mbps Full Duplex
Transmission distance Ethernet / PoE Up to 100m - 1000 Base-T
Up to 200m between devices – 10/100 Base-T
LED Indication
Data 3 x Data Link (Green)
PoE 3 x PoE Link (Amber)
PWR 1 x Input Power Quality
(Green: Normal/48VDC and more, Green+Red: Caution,
Red : Power Shortage/38VDC and below
Power Input
PoE IEEE802.3af, IEEE802.3at
DC DC48V ~ 57V
Power Output PoE IEEE802.3af, IEEE802.3at
Model HPS-01: 2 Port Hybrid PoE Switch
Mechanical
Dimension 80.4(L) x 61.6(W) x 24(H) mm
Weight 102g
Environment
Operating Temp -20 ~ 60°C
Storage Temp -30 ~ 80°C
Relative Humidity 10% ~ 90%
Compliance
Certification FCC, CE, KC, RoHS
Surge Protection IEC 61000-4-5 4kV(1.2 / 50us), 2kV(8 / 20us)

What's Included?

HPS-01 Overview

Package Contents:

HPS-01

Bracket x 2

Screw x 4

Manual
