Single Port IP & PoE Cat5e Extender Set (400m/1300ft end-to-end converters)

ALP-EUP-01T/RNew ArrivalLorex for business badge
Purchase at pro.lorex.com
Lorex Partner Program Exclusive: Pricing available to Lorex Business Partners
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

Data + PoE over Any Cat5e (UTP)

400m (1300ft) Long Range

PoE from NVR to IP Camera

8K High-Quality Video Stream

Surge / Short Protection

Professional CCTV Quality

Simplified Installation

Cost Saving

Worldwide Certification

The EUP-01 Series are high-speed, long-distance Ethernet & PoE extenders that enable the transmission of Ethernet signals and PoE up to 400m through UTP cables. They offer a cost-effective and time-saving solution for migrating existing systems to IP-based systems, as the EUP-01 series supports easy installation utilizing existing UTP cables. With the long-distance transmission feature, these devices easily overcome the 100-meter distance limitation and significantly reduce construction costs compared to fiber optic configurations.

Connection Diagram

Connection Diagram

*Transmission distance may vary depending on the type and quality of cable, use of power and environmental condition.
**Distance is based on Cat.5e cable and 7 Watt IP Camera.

Product Specifications

Model EUP‑01T EUP‑01R
Interface
EoC Signal 1 x RJ45 - Ethernet over UTP (T-LinX)
Ethernet 1 x RJ45 - 10/100 Base-T with manual
Transmission Rate 10/100Mbps Full Duplex
Transmission Distance
Ethernet up to 400 m (Cat5e UTP Cable)
PoE (PoC) up to 400 m (Cat.5e / 20W)
LED Indication Ethernet 1 x Link (Yellow) / 1 x ACT (Green)
Power
Input B-Link or DC48V~57V PoE Switch or DC48V~57V
PoE Output IEEE802.3af (PoE),
IEEE802.3at (PoE+),
Extra PoE up to 60W with 57V Power Adaptor
PoE Not Supported
PoC Only
PoE Input Up to 25.5W (PD) Up to 25.5W (PD)
Model EUP‑01T EUP‑01R
Mechanical
Dimension 93(L) x 51(W) x 24(H)mm
Weight 52g
Environment
Operating Temp -20 ~ 60°C
Storage Temp -30 ~ 80°C
Relative Humidity 10% ~ 90%
Compliance
Certification FCC, CE, KC, RoHS
Surge Protection IEC 61000-4-5 4kV(1.2 / 50us), 2kA(8 / 20us)

What's Included?

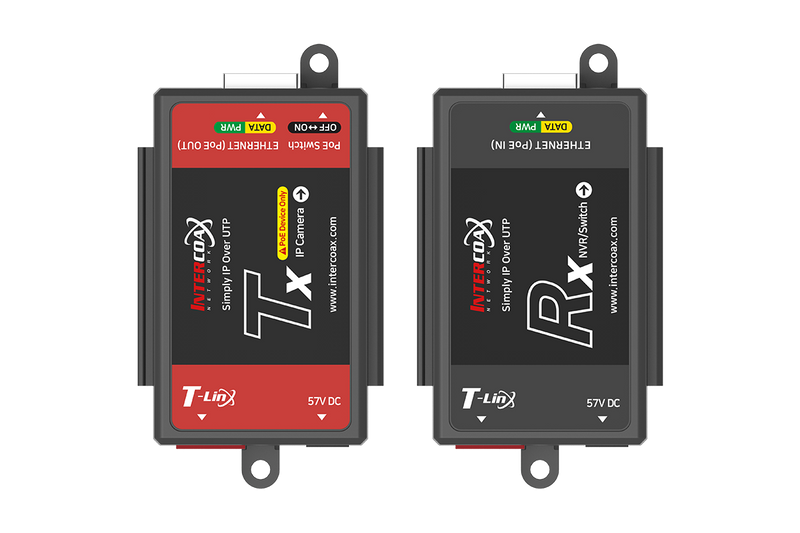

EUP-01TR Overview

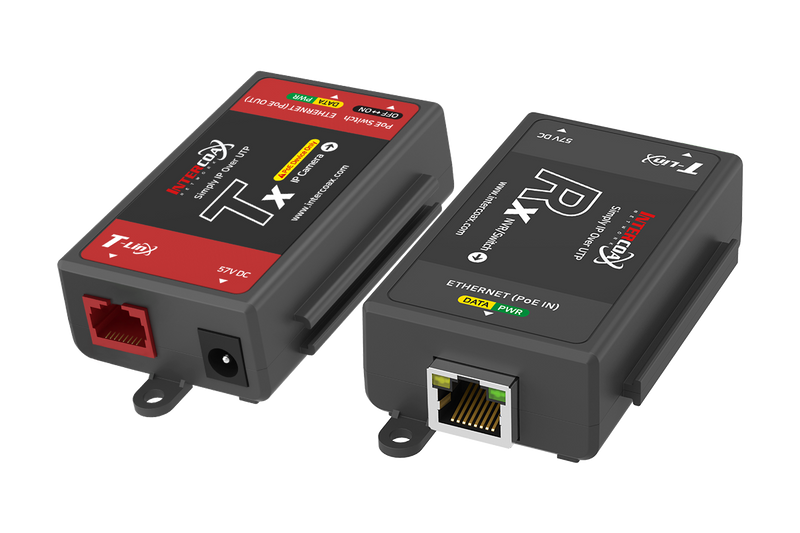

Package Contents:

EUP-01T
(Transmitter)

EUP-01R
(Receiver)

Manual

Product Support

ALP-EUP-01T/R - Single port Ethernet over UTP Transmitter / Receiver
