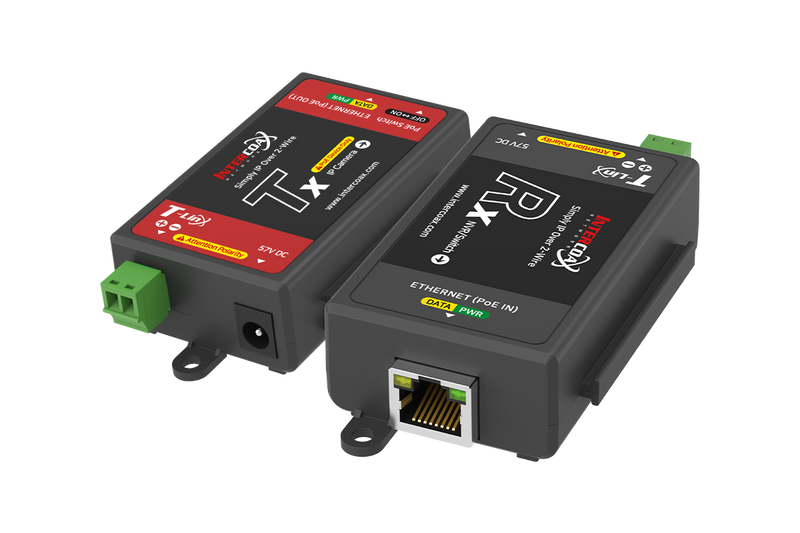

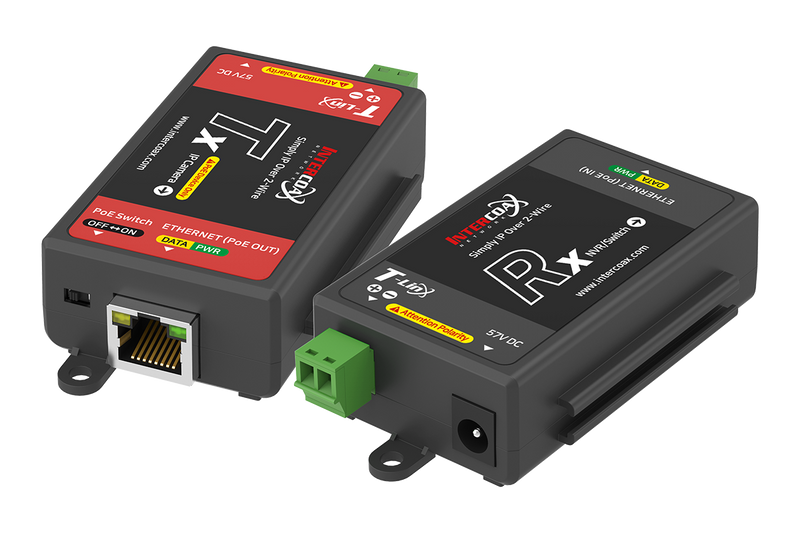

Single Port IP & PoE over 2-wire Set (300m/1000ft end-to-end converters)
Features
Data + PoE
over 2-wire
300m (1000ft)
Long Range
PoE from NVR
to IP Camera
8K High-Quality
Video Stream
Surge / Short
Protection
Professional
CCTV Quality
Simplified
Installation
Cost
Saving
Worldwide
Certification
The ETP-01 Series are high-speed, long-distance Ethernet & PoE extenders that enable the transmission of Ethernet signals and PoE up to 300m through a single pair of twisted wires. They offer a cost-effective and time-saving solution for migrating existing analog systems to IP-based systems, as the ETP-01 series supports easy installation utilizing existing UTP bundle cables or any single twisted pair cables. With the long-distance transmission feature, these devices easily overcome the 100-meter distance limitation and significantly reduce construction costs compared to fiber optic configurations.
Connection Diagram
Product Specifications
| Model | ETP-01T | ETP-01R | |
|---|---|---|---|
| Interface | |||
| 2-Wire | 1 x 2-Pin Terminal Block–Ethernet over 2-Wire cable | ||
| Ethernet | 1 x RJ45 - 100 Base-T | ||
| Transmission Rate | 100Mbps Full Duplex (100Mbps between Intercoax devices) |
||
| Transmission Distance | |||
| Ethernet | Up to 300m (1 Pair of Cat.5e) | ||
| PoE (PoC) | Up to 300m (1 Pair of Cat.5e / 7W Camera) | ||
| LED Indication | Ethernet | 1 x Link (Yellow) / 1 x ACT (Green) | |
| Power | |||
| Input | T-Linx or DC48V~57V | PoE Switch or DC48V~57V | |
| PoE Output | IEEE802.3af (PoE), IEEE802.3at (PoE+), Extra PoE up to 60W with 57V Power Adaptor |
PoE Not Supported PoC Only |
|
| Model | ETP-01T | ETP-01R | |
|---|---|---|---|
| Mechanical | |||
| Dimension | 93(L) x 51(W) x 24(H)mm | ||
| Weight | 52g | ||
| Environment | |||
| Operating Temp | -20 ~ 60°C | ||
| Storage Temp | -30 ~ 80°C | ||
| Relative Humidity | 10% ~ 90% | ||
| Compliance | |||
| Certification | FCC, CE, KC, RoHS | ||
| Surge Protection | IEC 61000-4-5 4kV(1.2 / 50us), 2kA(8 / 20us) | ||
What's Included?
Package Contents:
ETP-01T
(Transmitter)
ETP-01R
(Receiver)
Terminal
Connector x 2
Manual
Product Support
ALP-ETP-01T/R - Single Port Ethernet over 2-Wire Transmitter / Receiver
