Single Port PoE+ Repeater (200m/600ft PoE Repeater)

ALP-EPR-111New ArrivalLorex for business badge
Purchase at pro.lorex.com
Lorex Partner Program Exclusive: Pricing available to Lorex Business Partners
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

1 Input → 1 Output PoE

Long Range Connection

PoE from NVR to IP Camera

8K High-Quality Video Stream

Surge / Short Protection

Professional CCTV Quality

Simplified Installation

Cost Saving

Worldwide Certification

The EPR-111 comprises Ethernet & PoE Repeaters that enable overcoming the maximum 100m distance limitation in network configurations. For further distance extension, multiple devices can be connected via daisy-chaining (up to 600m). This provides a cost-effective and easy-to-install solution for all kinds of PoE (IEEE802.3af/at, up to 25W) compliant devices, such as IP cameras, network switches, VoIP phones, etc.

Connection Diagram

Connection Diagram

*Transmission distance may vary depending on the type and quality of cable, camera and environmental condition

Product Specifications

Model EPR-111
Interface
LAN / PoE In 1 x RJ45 - 10/100 Base-T with Auto-detect MDIX
LAN / PoE Out 1 x RJ45 - 10/100 Base-T with Auto-detect MDIX
Transmission Rate 100Mbps Full Duplex
Transmission Distance 100m **(200m)
LED Indication
Ethernet 1 x Data(Green)
Power 1 x PoE(Yellow)
PoE
Standards IEEE802.3af/at(PoE)
Max. Power Max. 25W
Model EPR-111
Mechanical
Dimension 66.4(L) x 40.9(W) x 21.8(H)mm
Weight 72.5g
Environment
Operating Temp -20 ~ 60°C
Storage Temp -20 ~ 80°C
Relative Humidity 10% ~ 90%

**( ) Max distance between EPR series.

What's Included?

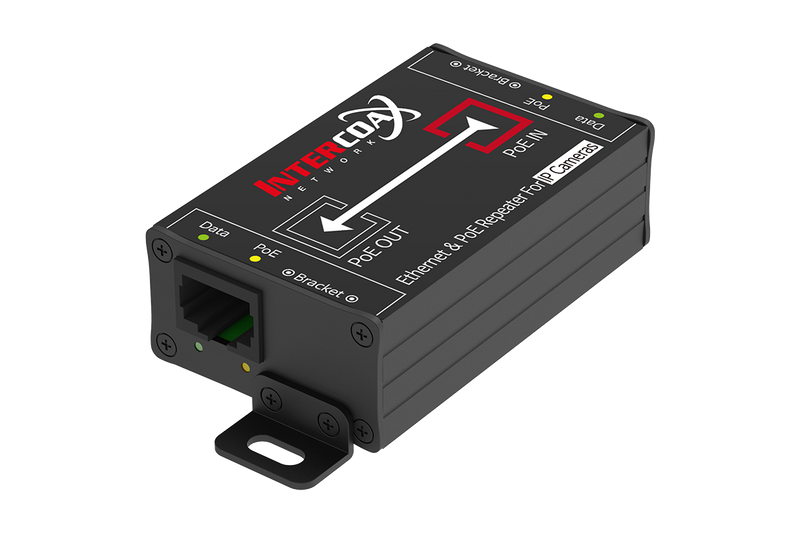

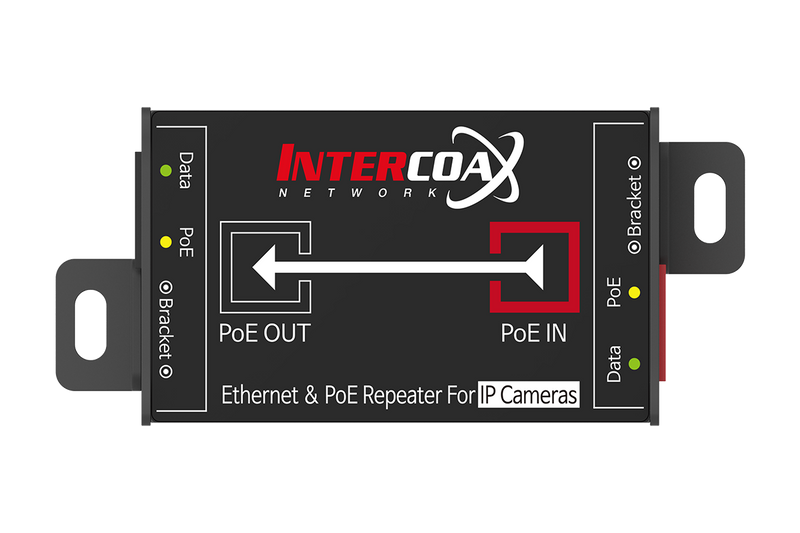

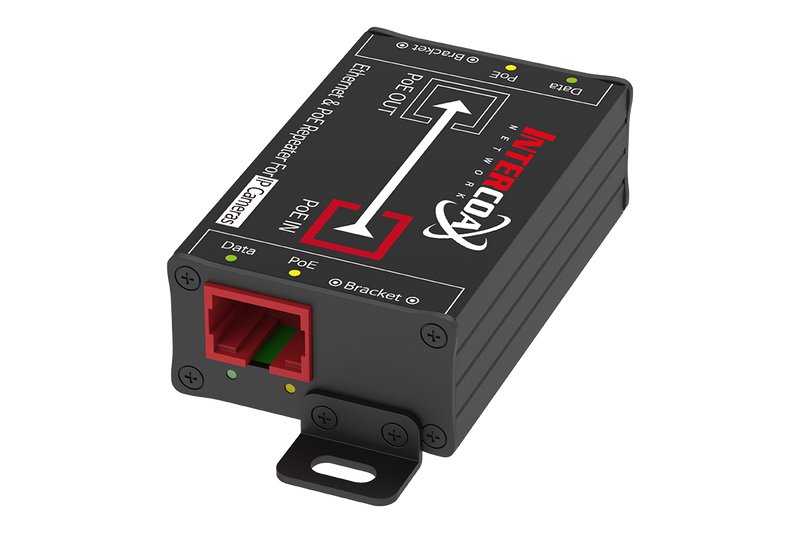

EPR-111 Overview

Package Contents:

EPR-111 Repeater

Bracket x 2

Screw x 4

Manual
