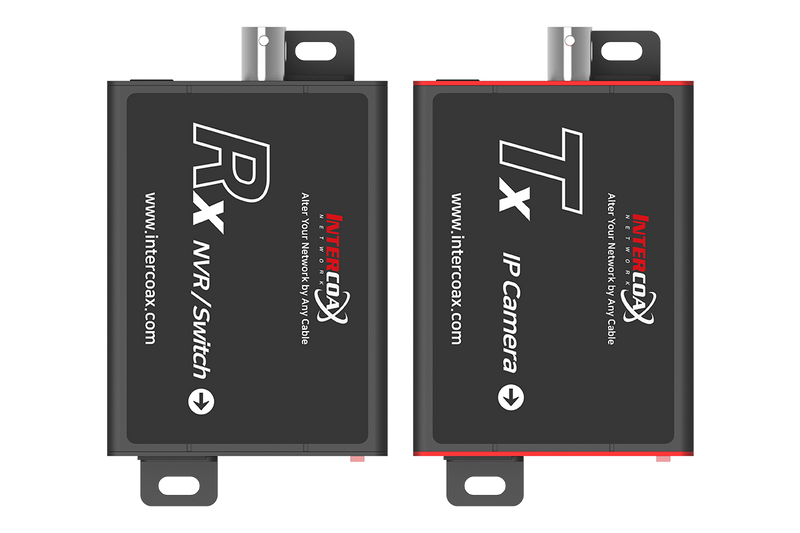

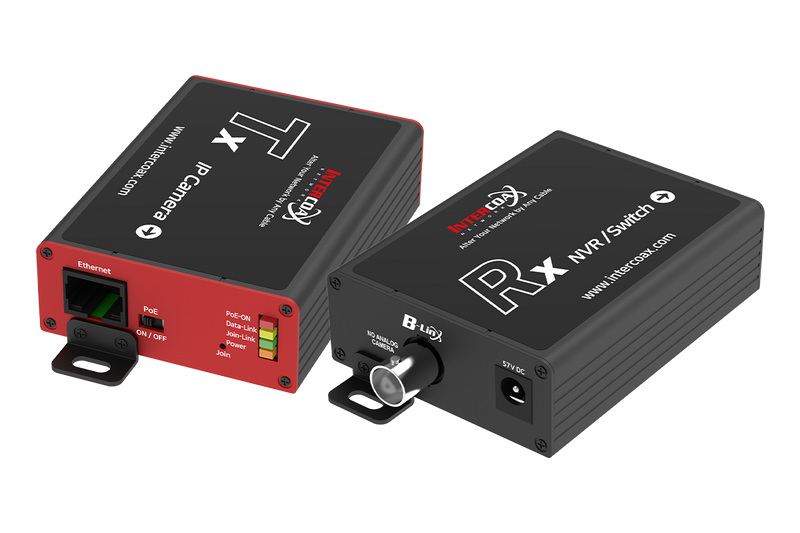

Professional Single Port IP & PoE over Coax Set (1200m/4000ft end-to-end converters)
Features
Data + PoE
over Any COAX
1200m (4000ft)
Long Range
PoE from NVR
to IP Camera
1:N Daisy Chain
Connection
Software
Configuration
60W
PoE++
8K High-Quality
Video Stream
Surge / Short
Protection
Simplified
Installation
Cost
Saving
Professional
CCTV Quality
Worldwide
Certification
The ECP-2601 is a high-speed, long-distance Ethernet & PoE extender that enables the transmission of Ethernet signals up to 2.4 km and PoE up to 1.2 km via Coax (or UTP, 2-wire) cables in various situations. It offers a cost-effective and time-saving solution for migrating existing analog systems to IP-based systems, as the ECP-2601 supports easy installation using existing cables. With its long-distance transmission capability, this device easily overcomes the 100-meter distance limitation and significantly reduces construction costs compared to fiber optic configurations.
Connection Diagram
*Transmission distance may vary depending on the type and quality of cable, use of power and environmental condition.
**Distance is based on RG-6 cable and 7 Watt IP Camera.
Product Specifications
| Model | ECP-2601T | ECP-2601R | |
|---|---|---|---|
| Interface | |||
| Coax | 1 x 75Ω BNC (Female) - Ethernet over Coax (B-LinX) | ||
| Ethernet | 1 x RJ45 - 10/100 Base-T with Auto-detect MDIX | ||
| Transmission Rate | 95Mbps Full Duplex (270Mbps between Intercoax devices) |
||
| Transmission Distance | |||
| Ethernet | up to 2.4Km(RG-6) | ||
| PoE (PoC) | up to 1.2Km (RG-6 / 7W camera) | ||
| LED Indication | Ethernet | 1 x Data-Link (Yellow) | |
| EoC | 1 x Join-Link (Green) | ||
| Power | 1 x Power On(Amber) | ||
| PoE | 1 x PoE Out (Red) | ||
| Encryption | 128-bit AES | ||
| Model | ECP-2601T | ECP-2601R | |
|---|---|---|---|
| Power | |||
| Input | B-Linx or DC12V~57V | PoE Switch or DC12V~57V | |
| PoE Output | IEEE802.3af(PoE), IEEE802.3at (PoE+), Extra PoE up to 60W |
PoE Not Supported PoC Only |
|
| Mechanical | |||
| Dimension | 82.4(L) x 61.6(W) x 24(H)mm | ||
| Weight | 77g | ||
| Environment | |||
| Operating Temp | -20 ~ 60°C | ||
| Storage Temp | -30 ~ 80°C | ||
| Relative Humidity | 10% ~ 90% | ||
| Compliance | |||
| Certification | FCC, CE, KC, RoHS | ||
| Surge Protection | IEC 61000-4-5 4kV(1.2 / 50us), 2kA(8 / 20us) | ||
What's Included?
Package Contents:
ECP-2601T
(Transmitter)
ECP-2601R
(Receiver)
Bracket x 2
Screw x 4
Manual
Product Support
ALP-ECP-2601T/R - Premium Single Port Ethernet over Coax Transmitter / Receiver
