Doorbell Power Adapter

Save $5.00 (20%)
AP24V500B
Sale price$19.99 Reg. Regular priceReg. $24.99
Receive an exclusive 15% discount with Lorex Upgrade Program. Click here to learn more.
$19.99
SAVE $5.00 (20%)
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

Provide continuous power to your Lorex Video Doorbell, even if you don’t have pre-existing doorbell wiring, with this power adapter. The simple plug-and-play setup comes with eyelet connectors for a secure installation. You can rely the on the built-in over voltage, over current, and short circuit protection for a reliable doorbell connection.



24/7 Power

Easy Installation

Power Protection

Works with Lorex Video Doorbells

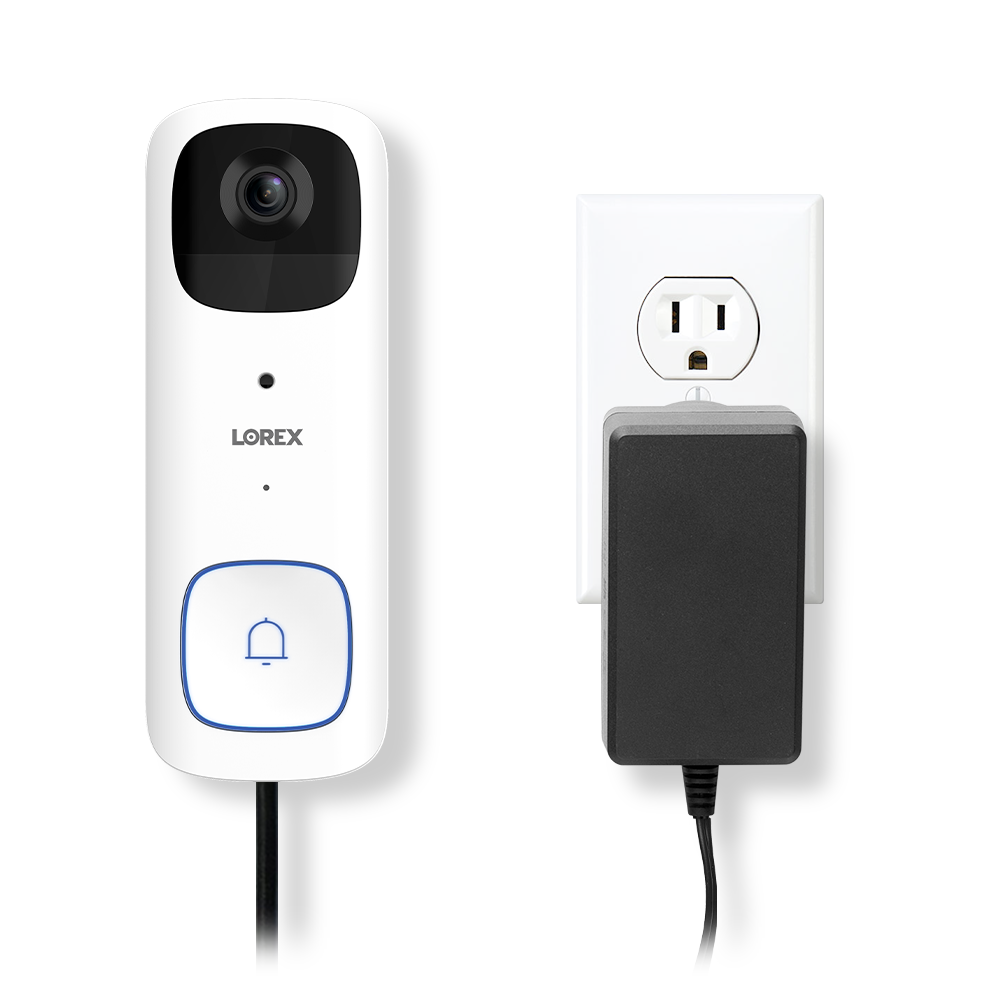

Power your Lorex Doorbell

Make sure your doorbell is always powered with this Lorex doorbell adapter. It's compatible with both wired and battery-operated doorbells and can be used to provide an uninterrupted power supply if there's no existing power wiring or compatible transformer. Keep your doorbell always ready to go and never worry about charging a battery doorbell again.

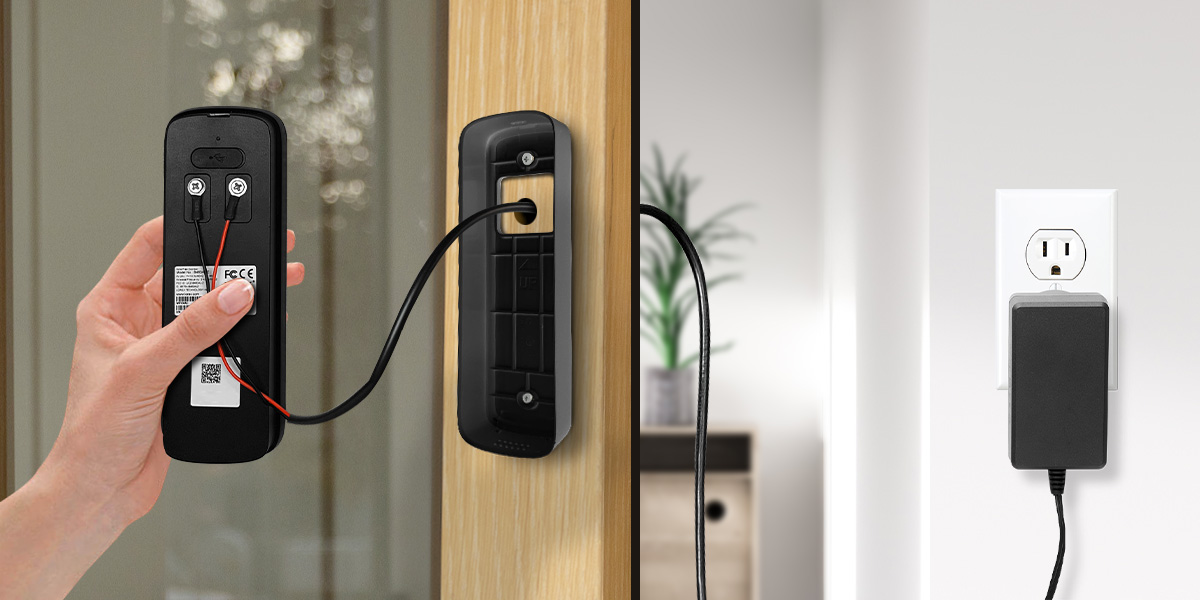

Easy Installation

Simply install with the eyelet connector and plug and play into a wall outlet, ensuring a reliable connection to your doorbell. To install the doorbell without any gaps, drill a hole in the wall for the cable to pass through.

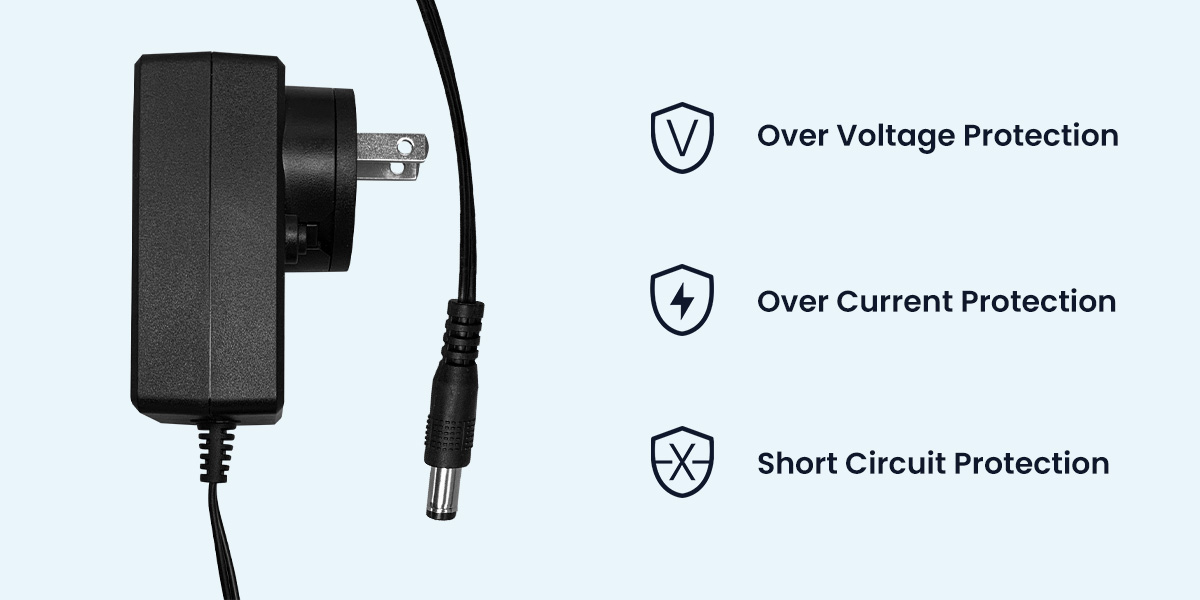

Safe and Reliable

Over voltage, over current, and short circuit protection are vital for electrical systems, preventing damage and ensuring safety by regulating voltage levels, limiting current flow, and interrupting circuits in case of short circuits.



Product Compatibility

Product Specifications

Rated Voltage AC100-240V
Variation Range AC90-264V
Rated Frequency 50/60Hz
Variation Frequency 47-63Hz
Input Current 1.0A maximum
Inrush current 60A Max. Cold start @ 100V AC, 60Hz input
80A Max. Cold start @ 240V AC, 50Hz input
AC Leakage Current 0.25mAh Max.
Output characteristics
Voltage 24Vdc±5%
Min load 0A
Max. load 1.0A
Output ripple & noise 120mVp-p Max.
Turn-On delay time 3 sec Max. @ 100-240Vac input
Rise time 50mS Max. from 10% to 90% rated voltage @ 100Vac/240Vac
Hold up time 10mS Min @ 100Vac/240Vac
Overshoot voltage -3 to +7% rated voltage max. @ turn on or turn off
Average efficiency 86.20% min. @ Input 115/230Vac. and 100%, 75%, 50%, 25% Rated Load
Environmental Requirement
Operating Temperature -10°C to 45°C
Storage Temperature -40°C to 80°C
Relative Humidity 5% to 95%, non-condensing
Mechanical Requirement
Power adapter
Enclosure 76 (L) x 44 (W) x 31.3 (H) mm
Weight 115g
Color Black
DC plug 5.5mm x 2.1mm x 10mm
Cord 3 meter, UL2468, 24AWG/2C

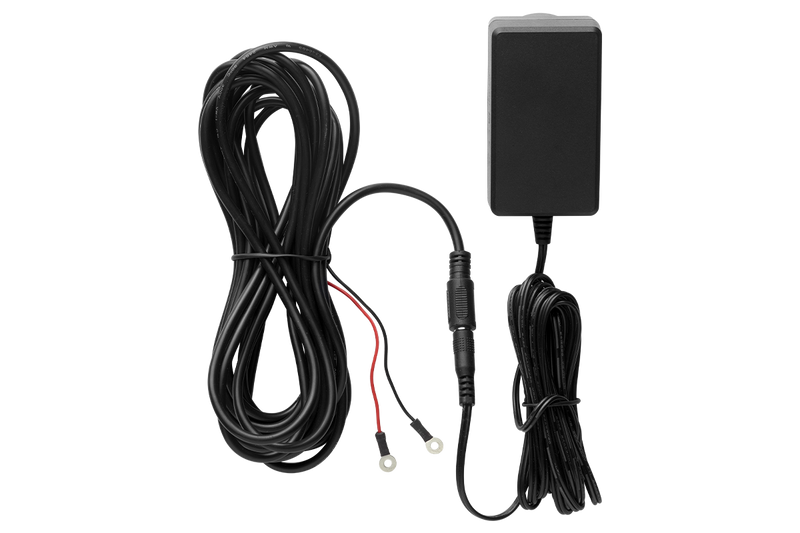

Extension Cable
Color Black
Eyelet Connector RV1-3.2
Length 5 meters

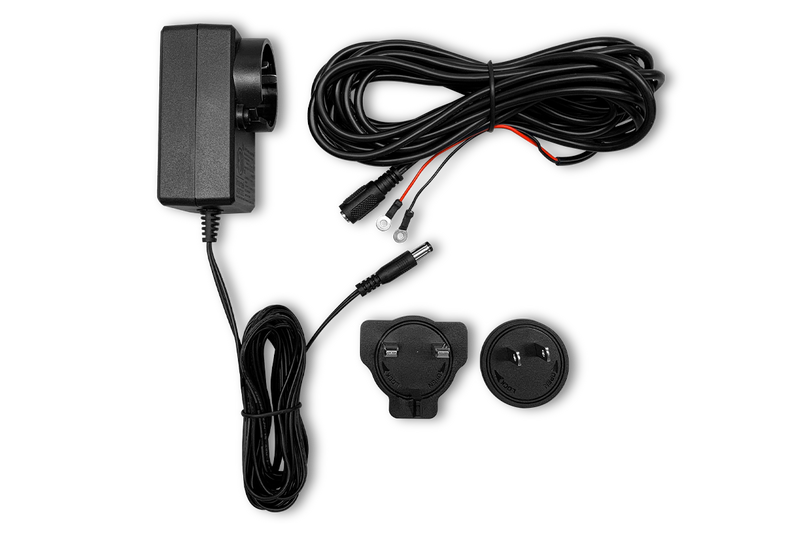

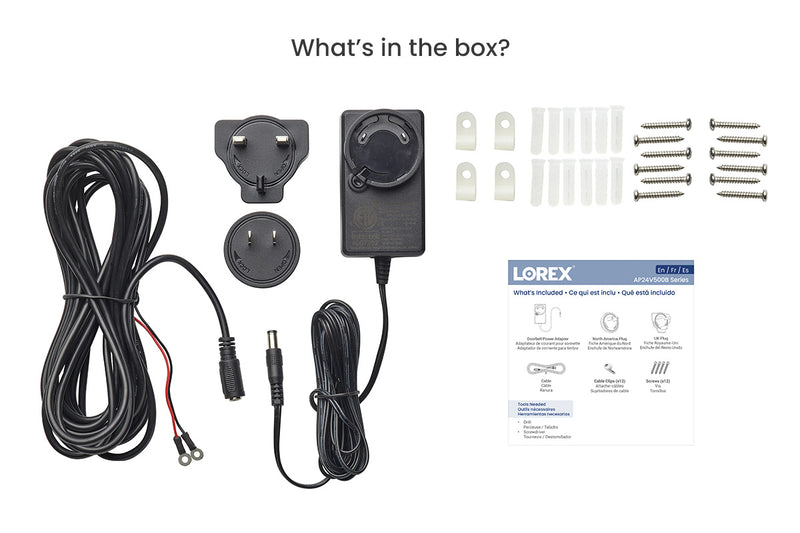

What's Included?



Package Contents:

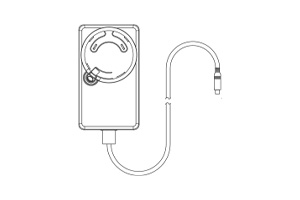

1 × Doorbell Power Adapter (with 3m cable)

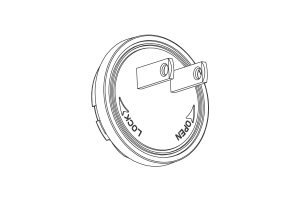

1 × North America Plug

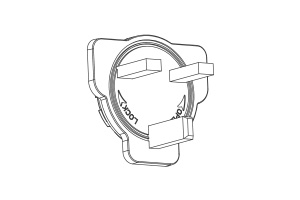

1 × UK Plug

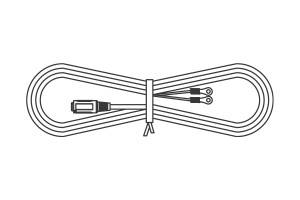

1 × Extension Cable (5m)

12 × Cable Clips

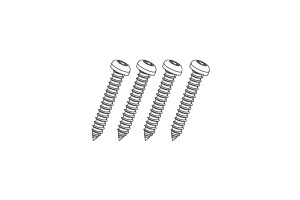

12 × Screws

Quick Start Guide
