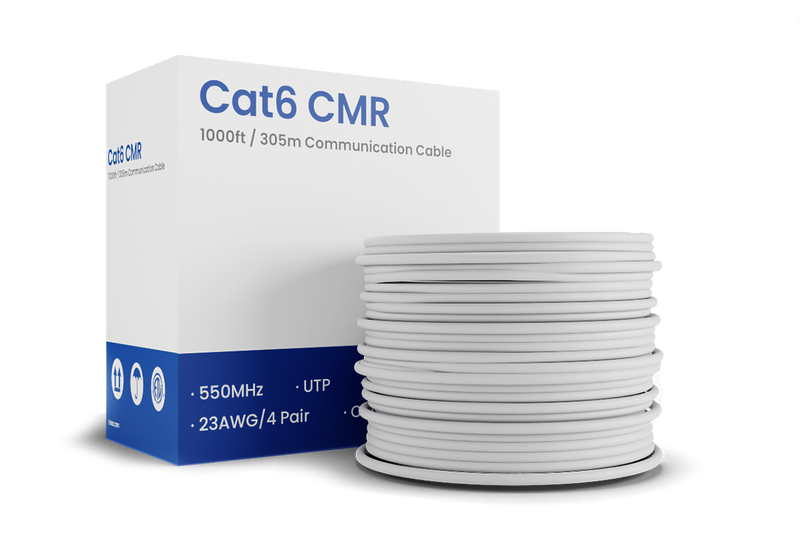

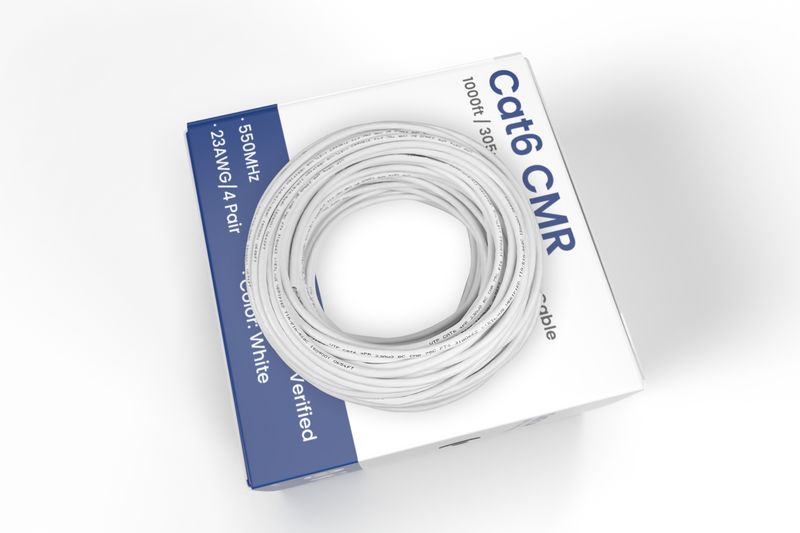

1,000ft Bulk Cat6 UTP Ethernet Cable
$207.99
SAVE $52.00 (20%)
SAVE $52.00 (20%)
Features
Get reliable, high-performance data transmission for your security camera and enable rapid data transfer, without any loss of image and audio quality. Choosing Cat6 cables for security camera installations can be seen as a future-proofing measure. As camera technologies evolve and demand for higher resolutions increases, Cat6 provides a foundation for supporting these advancements.
c(ETL)us Certified CAT6 Ethernet Cable
Get durable, premium-quality cables that has passed the established safety standards for electrical devices and components set down by c(ETL)us
Less Cross-Talk
Reduce the impact of "crosstalk", that disrupts the normal flow of data within a cable and compromises video quality, thanks to the copper construction and tighter shielding of the cables.
Protect from fire
The cable jacket of this CAT6 ethernet cable has passed a vertical burn test to certify that flames will not travel down the cable. Based on UL Cable specifications for CMR, the fire resistance should be limited to eight feet based on the "vertical tray flame test." This prevents fire from quickly spreading between walls and floors. The cable also meets the FT4 certification standards.
Easily organize for future needs
See at a glance, how many feet of cable are remaining, thanks to the length markers on the cable.
Product Compatibility
This cable is compatible with all IP cameras and NVRs. However, please check the maximum distance specification of your camera before cutting. RJ45 connectors not included.
Ethernet (IP) Cable Comparison Chart
 CAT6 Outdoor Extension Cable |
 Cat5e Network Ethernet Cable |
 CAT6 Spool Cable |
||||
|---|---|---|---|---|---|---|
| CBL100C6RXU | CBL200C6RXU | CBL300C6RXU | CBL60C5RU | CBL100C5 | ACR-U11W-E | |
| Length (ft) | 100 | 200 | 300 | 60 | 100 | 1,000 |
| Technology | Cat6, STP | Cat6, STP | Cat6, STP | Cat5e, UTP | Cat5e, UTP | Cat6, UTP |
| UL / ETL Certified | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| CMR Riser Rated | ✔ | ✔ | ✔ | - | - | ✔ |
| CM Rated | - | - | - | ✔ | ✔ | - |
| Outdoor Usage | ✔ | ✔ | ✔ | - | - | - |
| Waterproof | ✔ | ✔ | ✔ | - | - | - |
| Water Resistant | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Fire Resistant | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Direct Burial Underground | ✔ | ✔ | ✔ | - | - | - |
| Camera Connector Shield | ✔ | ✔ | ✔ | - | - | - |
| RJ45 Connector | ✔ | ✔ | ✔ | ✔ | ✔ | - |
Product Specifications
| Rated Temperature | -40 °F to 167 °F / -40 °C to 75 °C |
|---|---|
| Installation Temperature | -4 °F to 122 °F / -20 °C to 50 °C |
| Application | Indoor installation only, not applicable for outdoor or buried underground. Need to crimp with RJ45 connectors (not included) before connecting with any IP cameras or devices. |
| Center Conductor | |
|---|---|
| Material | Solid Bare Copper |
| Construct | 0.02 ± 0.0002” / 0.55 ± 0.005 mm |
| Insulation | |
|---|---|
| Material | HDPE |
| Outer Diameter | 0.039 ± 0.00039” / 0.98 ± 0.01 mm |
| Color | BLUE, WHITE/BLUE, ORANGE, WHITE/ORANGE, GREEN, WHITE/GREEN, BROWN, WHITE/BROWN |
| Rip-Cord | |
|---|---|
| Material | Nylon |
| Specification | 200D × 3 mm/No. |
| Separator | |
|---|---|
| Material | PE |
| Specification | 0.16 × 0.016” / 4.0 × 0.4 mm |
| Outer Jacket | |
|---|---|
| Material | CMR/FT4 ETL PVC |
| Outer Diameter | 0.23 ± 0.0079” / 5.8 ± 0.2 mm |
| Color | White RAL9010 |
| Remaining Length | Decreasing in every 2 ft |
| Sheath Physical Properties | |
|---|---|
| Before Aging Strength (Mpa) | ≥ 13.5 (Tensile) ≥ 150 (Elongation %) |
| After Aging Strength (Mpa) | ≥ 12.5 (Tensile) ≥ 125 (Elongation %) |
| Electrical Characteristics (68 °F / 20 °C) | |
|---|---|
| Impedance (Ω) | 100 ± 15 |
| Delay Shew (ns / 100m) | ≤ 45 |
| NVP | 69% |
| Capacitance (nF / 100 m) max | 5.6 |
| DC Resistance (Ω / 100 m) max | 9.5 |
| DC Conductor Resistance Unbalance (%) max | 5.0 |
What's Included?
- Due to the inherent characteristics of the product, returns will not be accepted if the seal is broken or compromised, or if the product shows signs of use or alteration, except in cases where the product is found to be defective.
Product Support
ACR-U11W-E - 1,000 ft Cat6 CMR/FT4 UTP Communication Cable
